| 모델 번호.: | JP-111152st | 전원 공급 장치: | AC380V 50Hz, 240V 60Hz 3 상 |
|---|---|---|---|
| 빈도: | 28/40kHz 단일 또는 이중 주파수 | 탱크 재료: | 스테인레스 스틸 SUS304/SUS 316 |
| 히터 범위: | 20-95 ° C 조정 가능 | 타이머 범위: | 조정할 수 있는 1-99 시간 |
| 탱크 용량: | 8500L | 내부 탱크 치수: | 2500*2000*1700mm |
| 탱크 두께: | 3mm | 초음파 전력: | 0-57600W |
| 난방력: | 36000W | 트랜스 듀서 수: | 1152pcs |
| 발생기 전력: | 1800W | 바구니로드: | 500kg 이상 |
| 생성기 수: | 6 세트 | ||

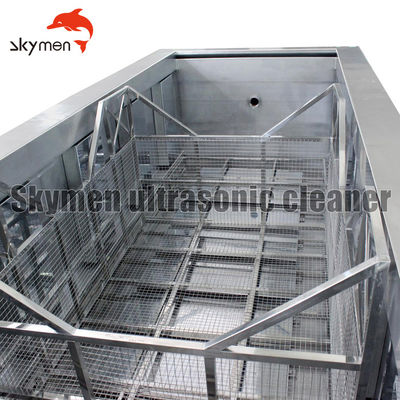

| 강조하다: | 8000L industrial ultrasonic cleaner tank,industrial ultrasonic cleaner 28/40kHz,ultrasonic cleaner for air cooler |
||
| 1 | Model | JP-11152ST |
| 2 | Parameter | Function: Ultrasonic cleaning Ultrasonic Frequency: 28/40kHz (other frequency can be customized) Tank Material: SUS 304 (SUS 316 can be customized) Thickness of tank: 3mm Inner tank dimension: 2500*2000*1700mm Tank Capacity: 8500L Transducer: 1152pcs Ultrasonic Power: 0-57600W Heating Power: 36000W Time setting of Ultrasonic: 0~99 hours Temperature setting: Room temperature ~ 95°C adjustable Drain value: Available Water inlet/outlet: Available Generator: 6 sets Generator power control: 1800W Generator shelf: Available Basket: Available Basket load: 500KG or more |
| 3 | Packing | By wooden case (No logs, free of fumigation) |
| 4 | Power supply | 380V 3 phase; 220V 3 phase; 415V; 440V; 600V |
| 5 | Warranty | 1 year warranty for spare parts, lifetime technical support |
| 6 | Certificate | CE, RoHS; FCC, REACH |
| 7 | Lead time | 20~30 working days after deposit |
| 7 | Optional functions | Filtration cycle system: Available; capture dirty water, recycle clean water Lifting system for basket: Available; take the basket up and down Dunking system: Available; Speed up cleaning Bubbling: Available; need to connect air compressor Electrolysis: Available; For cleaning more complex structure mold Cooling system: Available; To cool down inflammable and explosive Constant temperature: Available; Roller barrel: Available; for clean coins and big quantity parts Anti-explosion electric box: Available; Deionized(DI) water: Available Double/Multi frequency: Available; 28/40/20/68/80/132KHz Other functions: Negotiate via email |
Compared with traditional methods, ultrasonic cleaning effectively removes dirt, oils, lubricants, carbon, and other types of grime that build up on objects. Grooves, internal passageways, hidden corners, seals, and other hard-to-reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts.
Benefits include:
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
Electronic factory, utensil, hardware, machinery, communication, biological, medical instrument, glasses, optical, textile, auto parts, ships, aviation, mining area, commercial cleaning.
Kitchen industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
1 Year warranty for Skymen ultrasonic cleaner. If any technical problem occurs during warranty period, replacement parts will be sent free of charge. Technical support is also available after 1 year.
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck parts cleaning (remove oils, grease, pastes, etc.). 40kHz is better for PCB boards, electronic parts, etc. Higher precision goods require higher frequency.
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe and will not damage your objects.
A: A large variety of different formulas are designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.

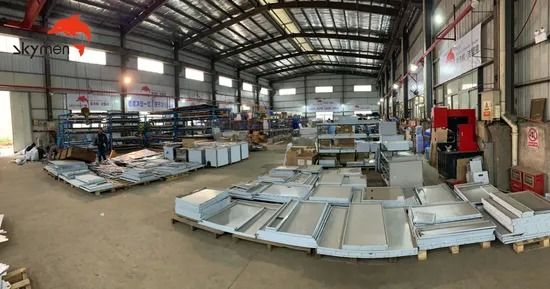

Skymen Cleaning Equipment Shenzhen Co., Ltd. has been engaged in ultrasonic cleaner field for more than 14 years. Our main products are ultrasonic cleaners with different capacities.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. We provide high quality products and after-sales services. Not only standard ultrasonic cleaners, but any non-standard models can be designed by our engineers.
