2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

인증
중국 Skymen Technology Corporation Limited 인증
중국 Skymen Technology Corporation Limited 인증
고객 검토
나는 초음파 세탁기술자가 당신에 의하여 좋은 품질에게 하고 있다 행복한, 처음 것 아주 좋습니다입니다.

—— Stefan (독일)

우수한 기계. 나는 모두에게 추천한 비행사 초음파 세탁기술자 할 수 있습니다 전문가 또는 취미를 위해 필요로 하는.

—— Blasko Krstev

체계는 아주 잘 호평을 받는 시험해서 및 일이었습니다. 나는 당신의 도움을 전부 평가합니다. 미래 사업 wth가 있는을 위해 다시 앞으로 보기 당신.

—— Haytham Tarhini (사우디 아라비아)

제가 지금 온라인 채팅 해요

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System
2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

큰 이미지 :  2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

제품 상세 정보:
인증: CE, RoHS
문서: 제품 설명서 PDF
결제 및 배송 조건:
최소 주문 수량: 1

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System

설명
모델 번호.: JTS-1288AD 오토메이션: 반자동
청소 정밀도: 일반 산업 청소 제어: 디지털
원칙: 물리적 청소 시간제 노동자: 1-30 분 조절 가능
히터: 조정할 수 있는 20-80C 초음파 빈도: 28KHz / 40KHz
탱크 재료: SUS304 / SUS316L 표면 마감: 하드 CR 도금 처리 (20+ 미크론)
주택 자료: 스테인레스 스틸 초음파 전력: 사용자 정의
히터 전원: 1.5kW | 3kw | 4.5kW 탱크 용량: 2000L
트랜스 듀서 유형: 원래 BLT 유형
강조하다:

2000L marine engine ultrasonic cleaner

,

industrial ultrasonic cleaner with oil filter

,

large capacity marine parts cleaner

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System and Motor Drive Lift
Product Overview

This marine engine parts ultrasonic cleaner utilizes advanced ultrasonic technology to effectively clean and degrease ship components including engines and wheels. The ultrasonic bubbles penetrate hard-to-reach areas that manual or traditional cleaning methods cannot access.

The tank size is fully customizable to meet specific customer requirements. The system efficiently removes rust, carbon deposits, paint, and heavy oil without damaging parts when used with appropriate cleaning solutions.

Product Images

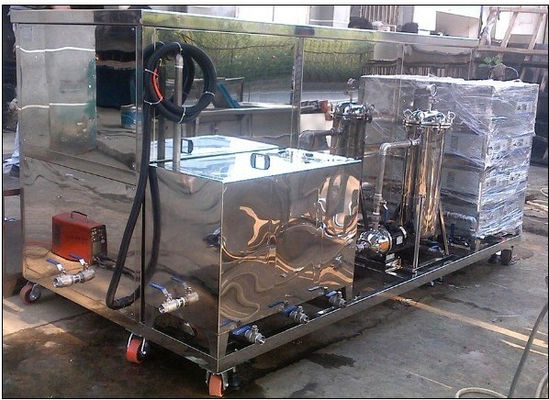

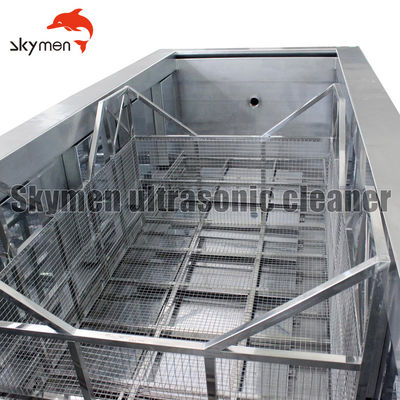

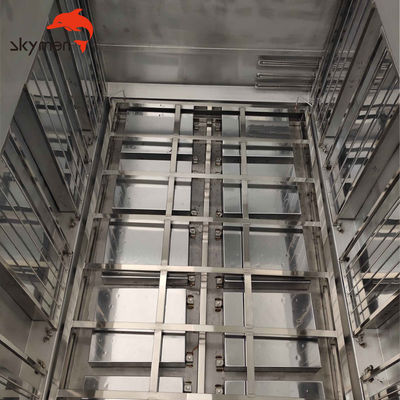

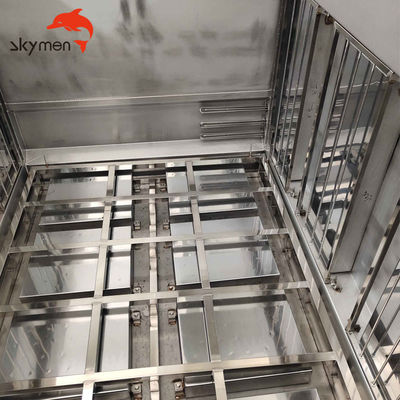

2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 0 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 1 2000L Marine Engine Parts Ultrasonic Cleaner with Oil Filter System 2
Key Features
  • Adjustable ultrasonic power with sweep mode control
  • Original BLT type transducer for superior performance
  • SUS 316L stainless steel tank construction
  • Designed for continuous operation capability
  • Precise adjustable thermo controller
  • Separately controlled ultrasonic electronic generator
  • Digital timer and heating control system
  • Optional boost mode and oil skimmer available
  • Pressure pump and filter system options
Warranty: 1 year
Lead Time: 25 working days
Technical Specifications
Model JTS-1006 JTS-1012 JTS-1018 JTS-1024 JTS-1030 JTS-1036
Tank's Working Dimension (mm) L1 305 355 406 500 500 500
Tank's Working Dimension (mm) W1 250 305 305 355 406 460
Tank's Working Dimension (mm) H1 305 355 460 500 500 550
Overall Dimension (mm) L2 485 535 586 680 710 710
Overall Dimension (mm) W2 430 485 485 535 586 640
Overall Dimension (mm) H2 700 750 680 720 720 770
Tank's Total Capacity 23L 38L 56L 88L 101L 126L
Tank's Material SUS304 / SUS316L
In-Tank Surface Finishing Hard-Cr Plating Treatment (20+ microns)
Housing's Material Stainless steel
Ultrasonic Frequency* 28kHz / 40kHz
Ultrasonic Transducer 6 12 18 24 30 36
Ultrasonic Output Power (Max.) 300W 600W 900W 1200W 1500W 1800W
Electronic Generator KG300 KG600 KG900 KG1200 KG1500 KG1800
Heater's (Hot Plate) Power 1.5kW 3kW 4.5kW
System Description

The JTS series single tank ultrasonic cleaner system features a replaceable transducer box and generator. These components can be either built-in or separate while working together to perform the ultrasonic cleaning process. The transducer box is immersible and can be mounted on one side, both sides, or the bottom of the tank.

The number and placement of transducers are carefully selected to maximize cleaning efficiency for any parts cleaning application. Both tank dimensions and transducer box specifications are available as custom options. The system delivers exceptional cleaning performance for molds and various parts, with an optional stainless steel basket available.
